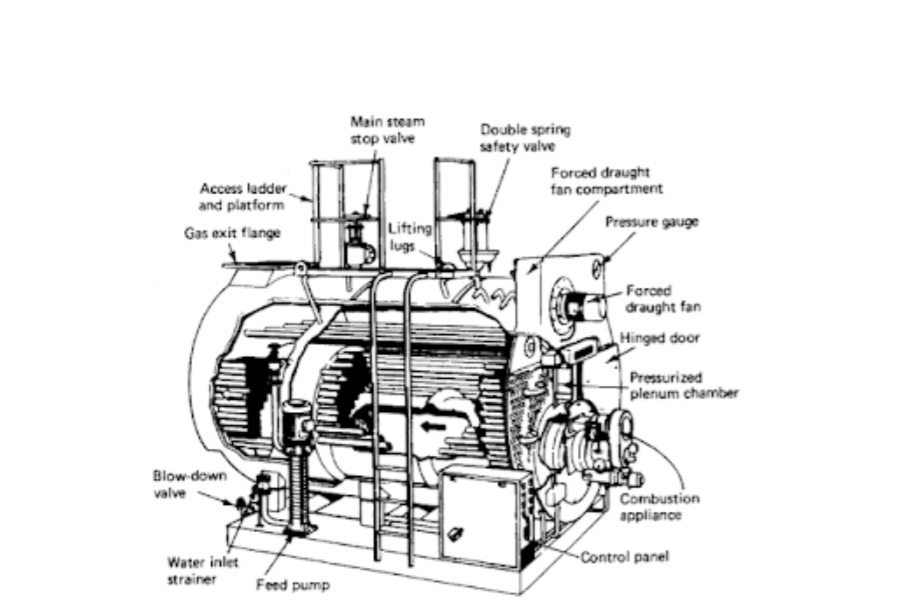

Most firetube boilers are now supplied as a completely packaged unit. This will include the oil burner, fuel pump, forced-draught fan, feed pumps and automatic controls for the system. The boiler will be fitted with all the appropriate boiler mountings. A single-furnace three-pass design.
Also read >> Boiler Definition.
Read also >> Types Of Boilers.
The first pass is through the partly corrugated furnace and into the cylindrical wetback combustion chamber. The second pass is back over the furnace through small-bore smoke tubes and then the flow divides at the front central smoke box. The third pass is through outer smoke tubes to the gas exit at the back of the boiler.
There is no combustion chamber refractory lining other than a lining to the combustion chamber access door and the primary and secondary quart. Fully automatic controls are provided and located in a control panel at the side of the boiler.
